AMBLUX

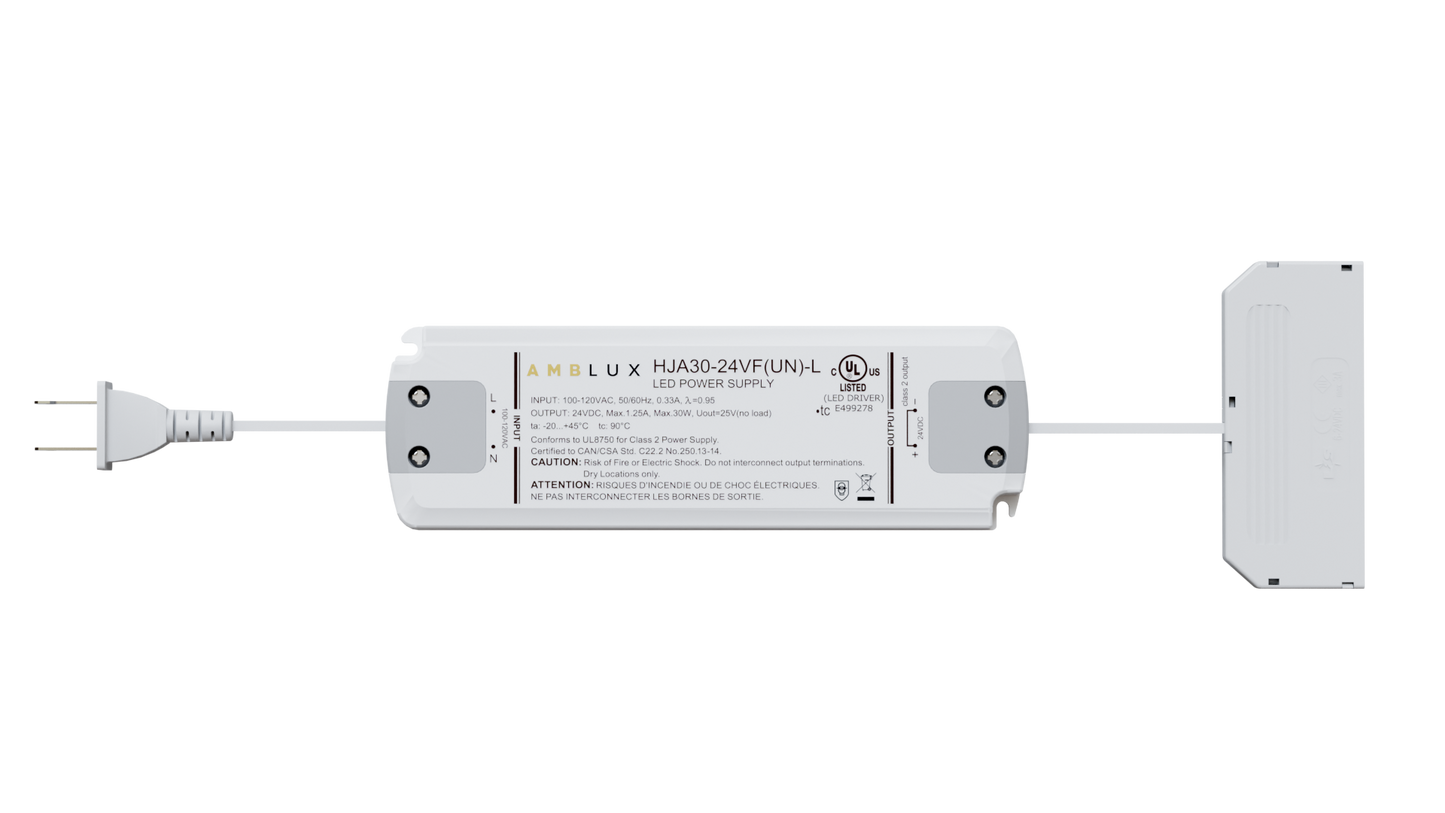

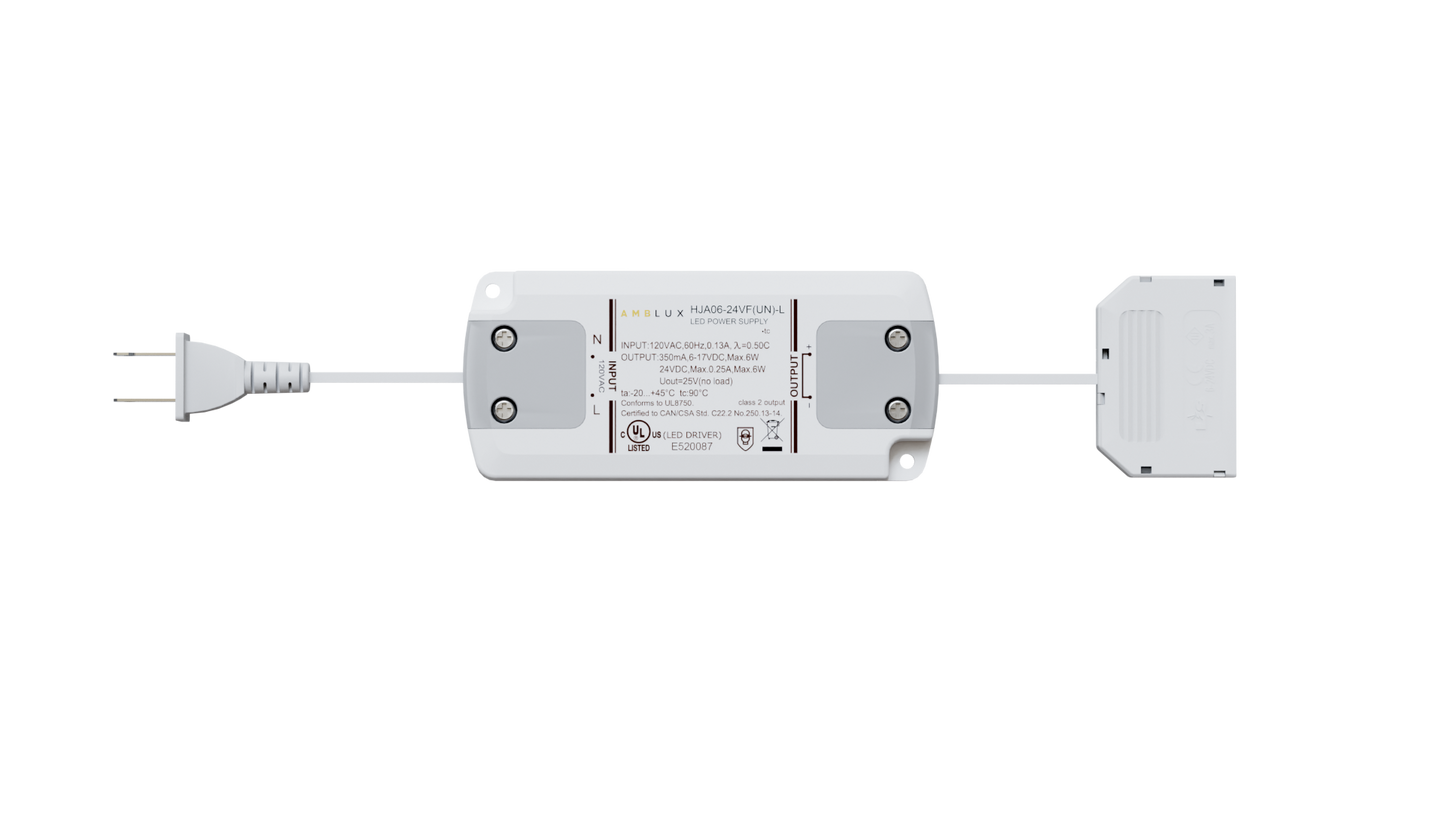

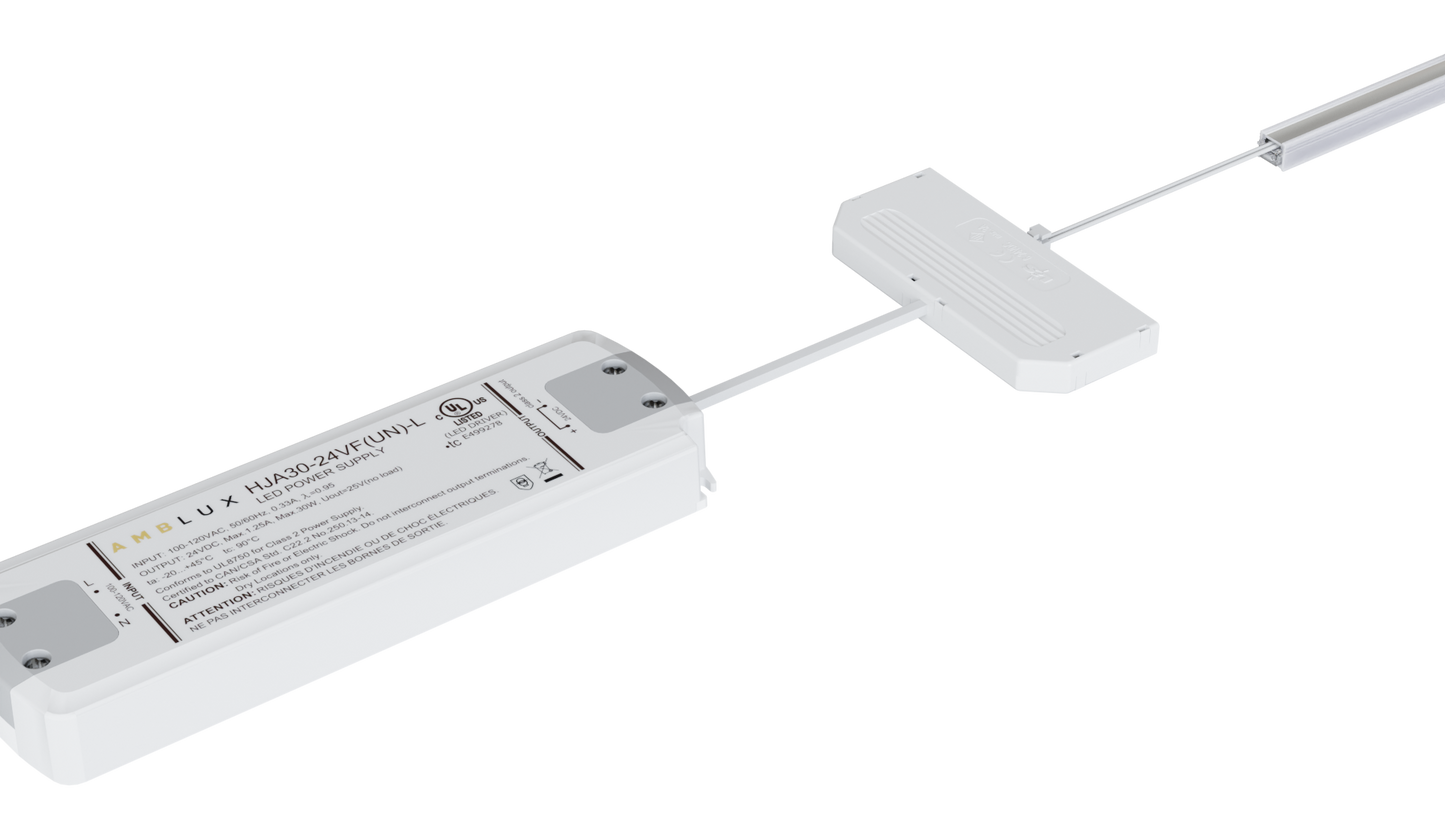

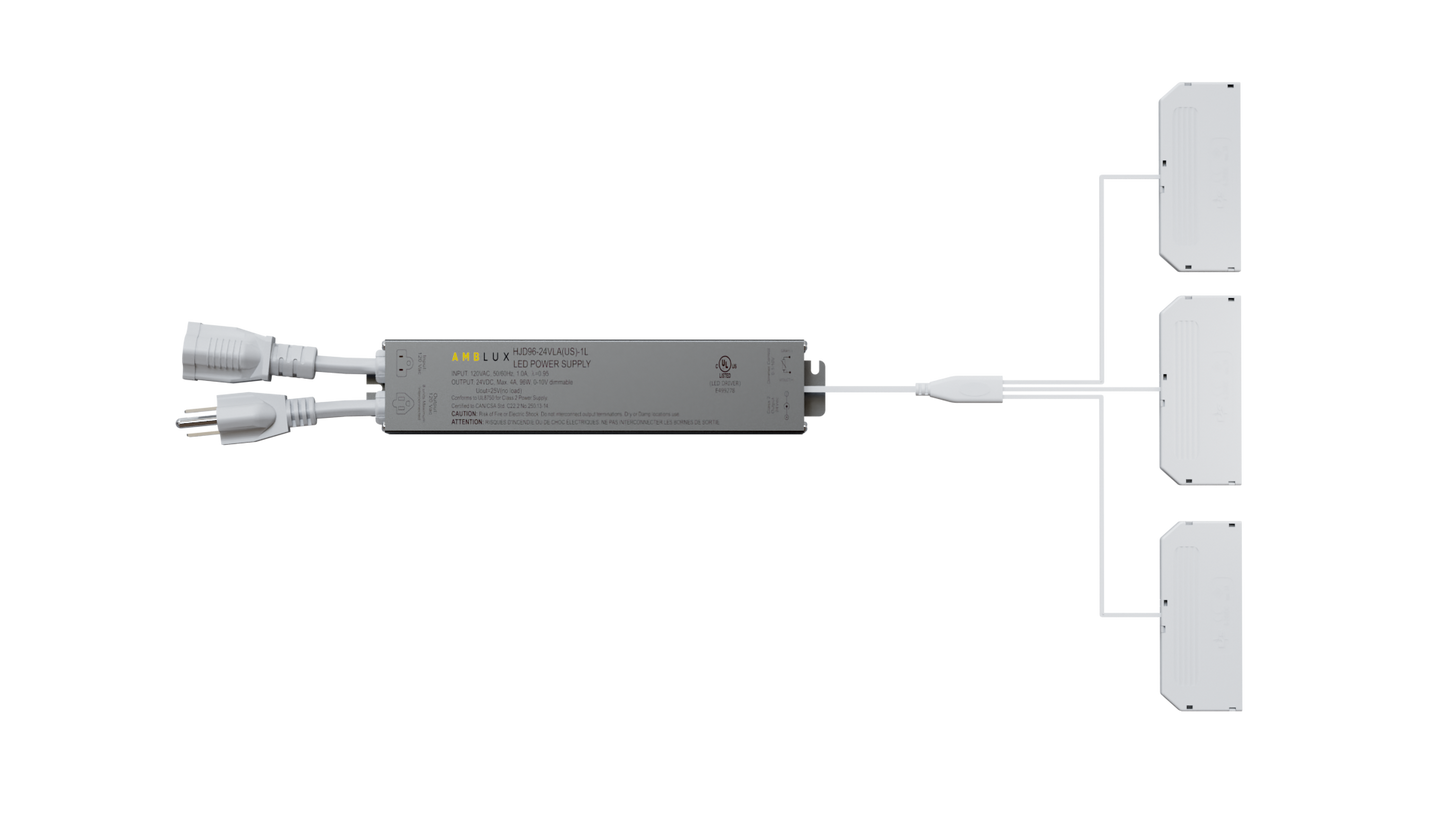

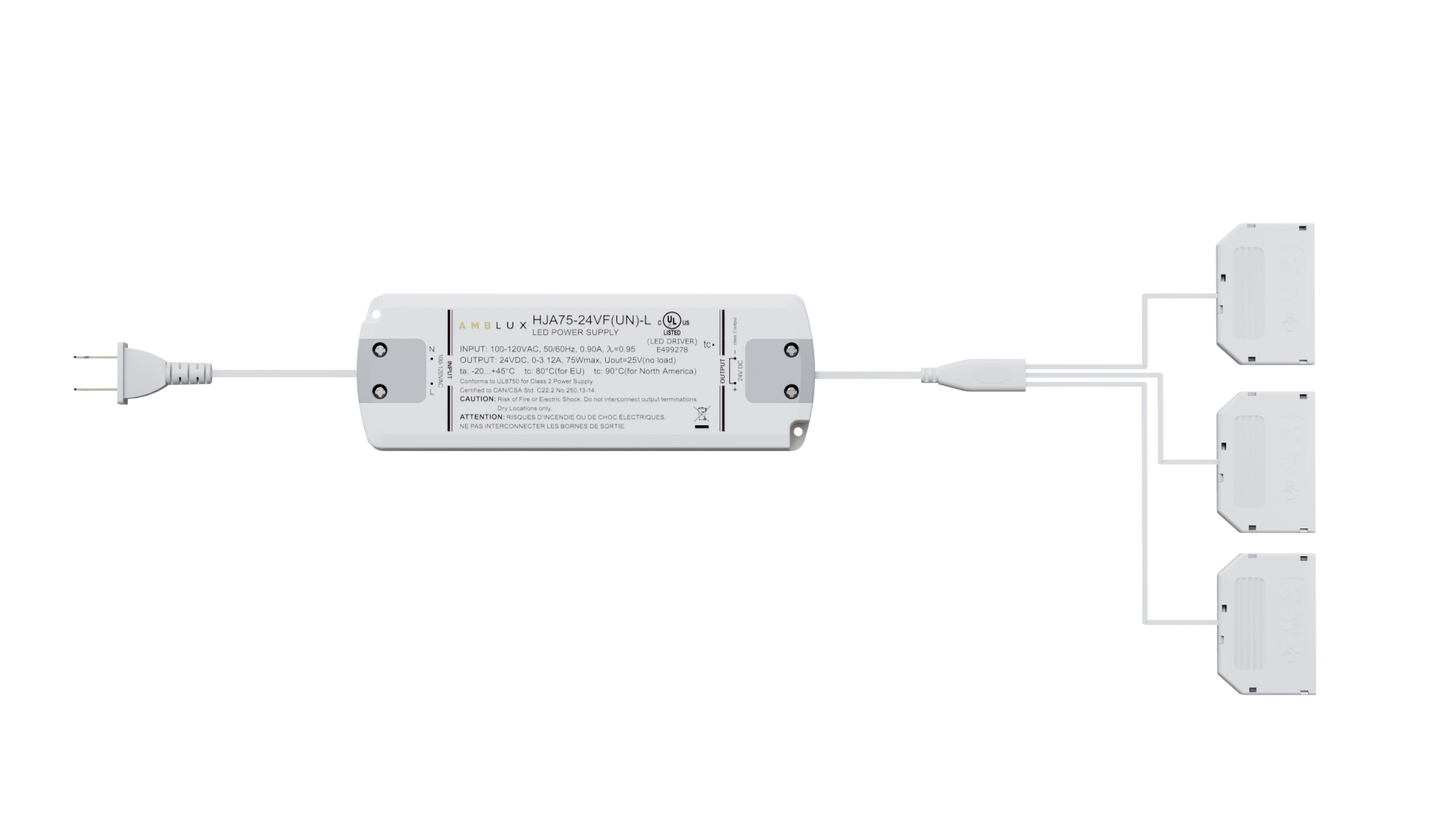

Ultra-thin, fixed-intensity 24V LED power supply

Ultra-thin, fixed-intensity 24V LED power supply

Wattage

Discover our ultra-thin 24V LED power supply featuring a non-variable current designed for efficiency and convenience. Classified as Class 2, this independent constant voltage driver series includes terminal blocks for quick connections. Its ultra-slim profile, measuring 10.8 mm in height, allows for seamless integration in various applications.  With a fast start-up time, it’s the perfect solution for your LED lighting needs.

Mains voltage
110 – 120 V
Input cable  1.8 m
Mains frequency
50 – 60 Hz
Material / Colour white plastic
Driver configuration fixed-intensity 24V LED power supply
Degree of protection
IP20
Output voltage 24 V DC
Output ports per W

06 W driver has  6 ports

30 W driver has 10 ports

75 W  driver has 18 ports

96 W  driver has 18 ports

Installation
screw fixing
Connections 1 x socket, control unit 2-pin 24 V box to box
Output power 06 , 30, 75 or 96 W
Standby power consumption 0.2 W
 Dimension per W            (L x W x H )

06 W (100X44X11 mm)

30W (161X51X18 mm)

75 W (166X57X22 mm)

96W ( 230X46X38.1 mm)

Total efficiency 89 %
Version

with overload protection (OVP/OCP/SCP/OTP)





View full details

Caption

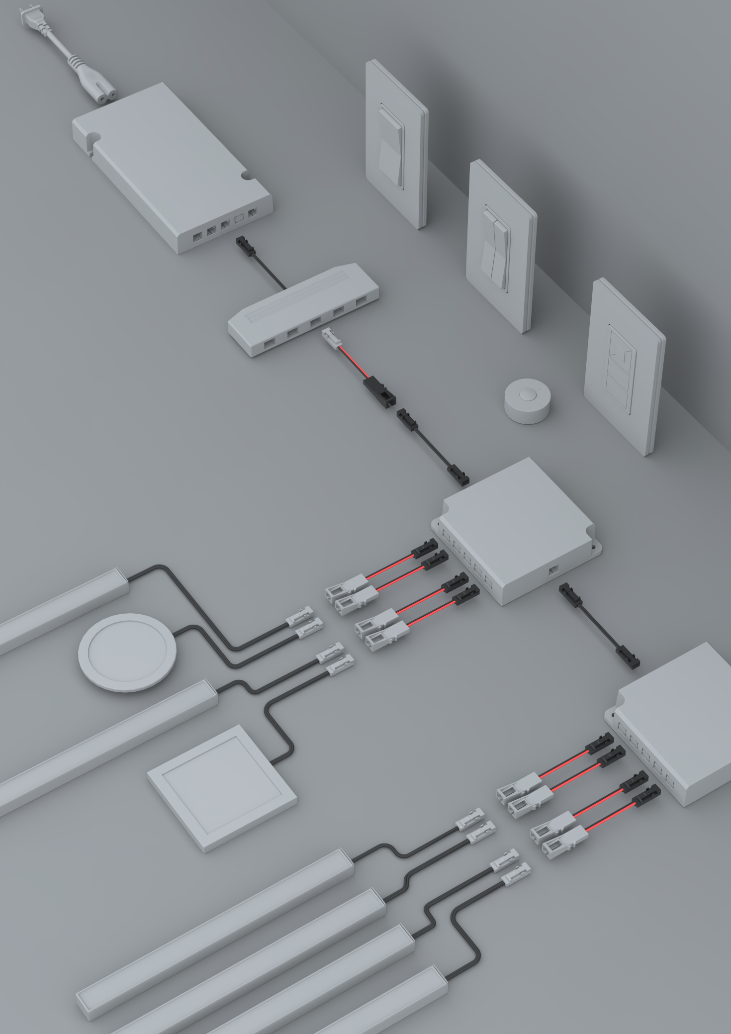

Amblux wall dimmer control system

The Amblux Wall Dimmer Control System: a sophisticated Bluetooth-enabled solution that offers seamless control over your luminaires. With our wireless wall dimmers, App or remotes, you can easily turn your lights on and off and adjust their brightness from anywhere in the room. Designed for flexibility, our dimmers can be self-powered or battery-operated, making them a convenient addition to any lighting setup.

Wall dimmer control system

Caption

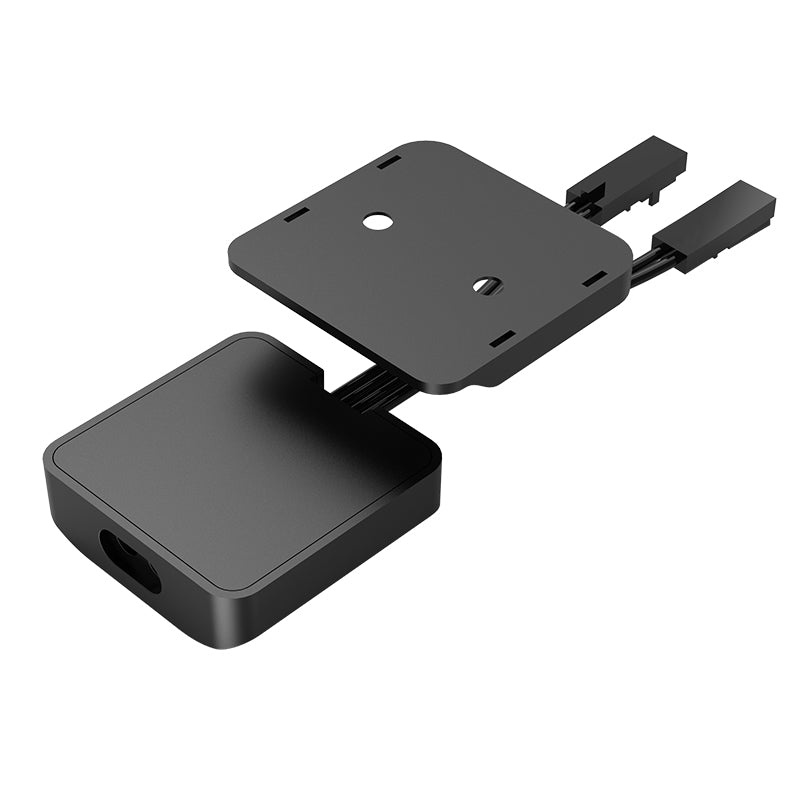

Wired independent Control sensors

The Wired independent Control sensors and switches are a versatile solution that uses a single wired sensor to manage a simple lighting installation. You can choose between two mounting options: recessed or surface-mounted sensors.

Wired independent Control sensors

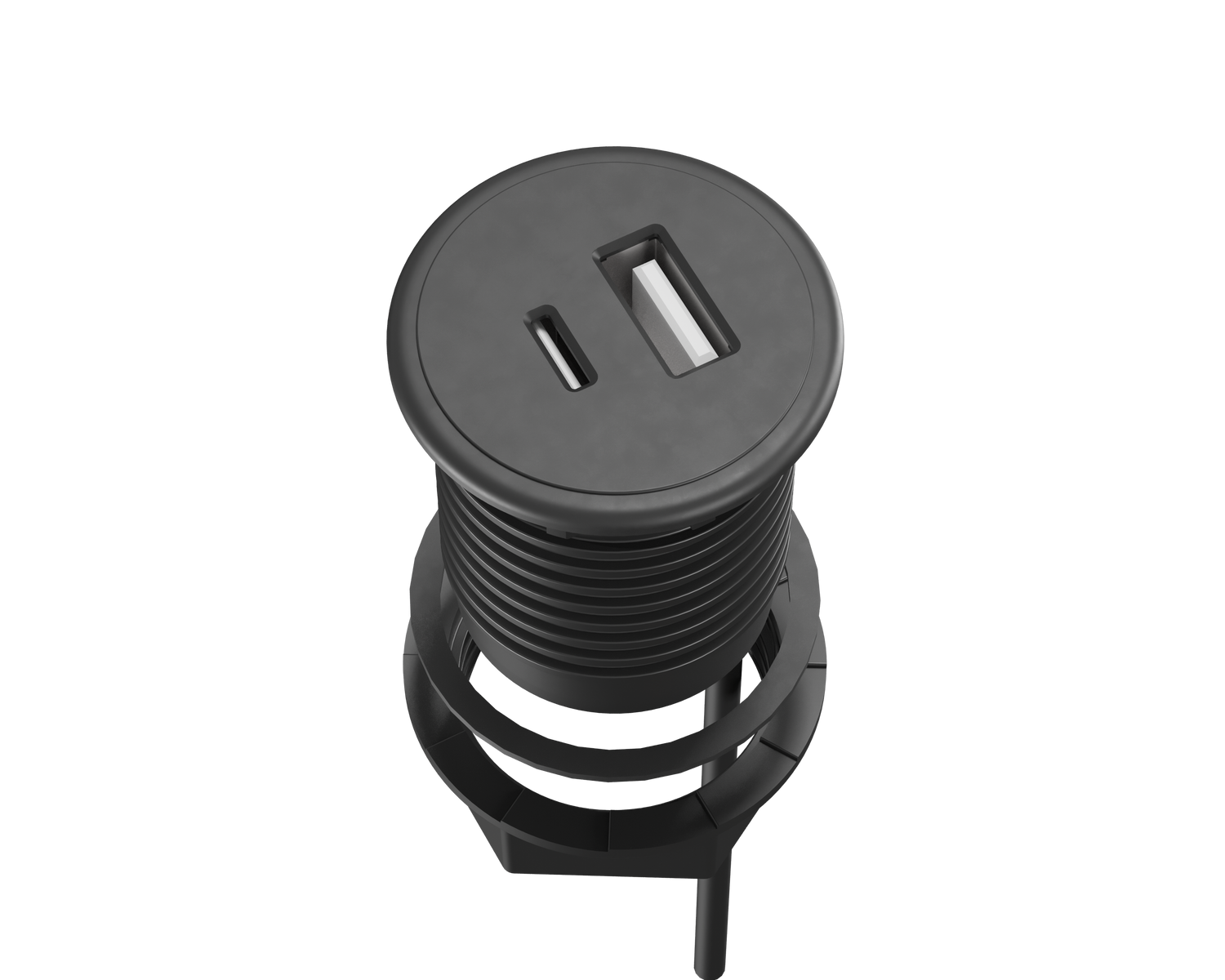

24V charging modules

Introducing our innovative 24V charging modules, designed for recessed applications. Choose from various options, including USB A and C sockets, or opt for our discreet quick charge solution, perfect for efficiently charging smartphones and tablets. Experience convenience and versatility in powering your devices!

24V charging modules
